Entry # 1118: 1I97_j2_A-G1054_A-U1065

Primary Citation: (from PDB entry 1I97)

M.PIOLETTI F.SCHLUENZEN J.HARMS R.ZARIVACH M.GLUEHMANN H.AVILA H.BARTELS C.JACOBI T.HARTSCH A.YONATH F.FRANCESCHI CRYSTAL STRUCTURES OF COMPLEXES OF THE SMALL RIBOSOMAL SUBUNIT WITH TETRACYCLINE, EDEINE AND IF3 EMBO J. V. 20 1829 2001

Experimental Method: X-RAY_DIFFRACTION

Structure Images

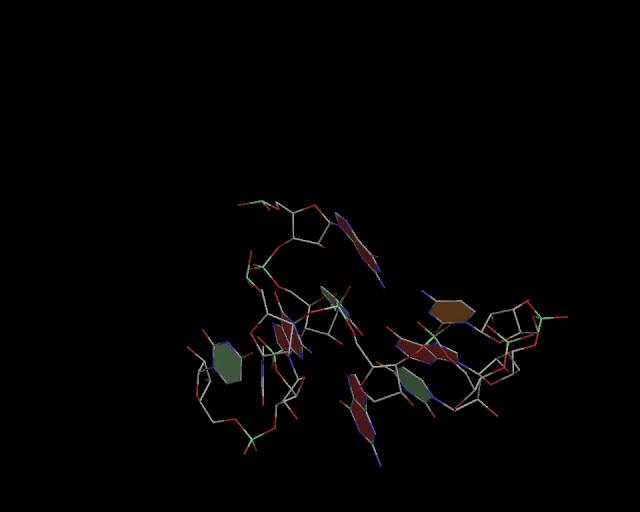

3d structure of junction secondary structure of junction

Click to launch 3D viewer Jmol | Larger 3D image | Created with Raster3D and RNAView

Derived Information
Type:Bulge LoopCluster:1IBM j2 A-G1072 A-U1083
NC-IUBMB Classification:2HS1Cluster Page
Angles: 125°
Fit Criteria: C
Extracted Structure:Download
Minimized Structure:Download RMSD = 0.82863Å

For more detailed information view the raw JunctionScanner output.

Sequence

Strand 1: Chain A: CGUGC 5nt

Strand 2: Chain A: GUGU 4nt
