Entry # 11725: 2I2V_j2_B-C2591_B-C2601

Primary Citation: (from PDB entry 2I2V)

V.BERK W.ZHANG R.D.PAI J.H.D.CATE STRUCTURAL BASIS FOR MRNA AND TRNA POSITIONING ON THE RIBOSOME. PROC.NATL.ACAD.SCI.USA V. 103 15830 2006

Experimental Method: X-RAY_DIFFRACTION

Structure Images

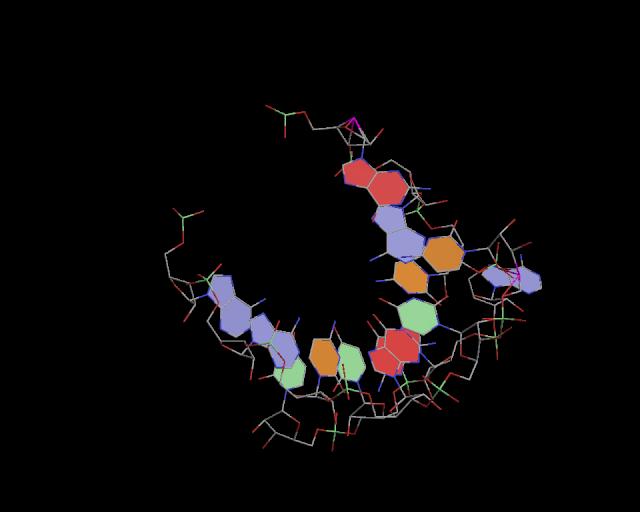

3d structure of junction secondary structure of junction

Click to launch 3D viewer Jmol | Larger 3D image | Created with Raster3D and RNAView

Derived Information
Type:Bulge LoopCluster:1NKW j2 0-C2570 0-C2580
NC-IUBMB Classification:2HS1Cluster Page
Angles: 167°
Fit Criteria: A
Extracted Structure:Download
Minimized Structure:Download RMSD = 0.67681Å

For more detailed information view the raw JunctionScanner output.

Sequence

Strand 1: Chain B: GACAGUU 7nt

Strand 2: Chain B: AACGUC 6nt
