Entry # 9633: 1ZDK_j2_S-G7_S-C16

Primary Citation: (from PDB entry 1ZDK)

E.GRAHN N.J.STONEHOUSE K.VALEGARD S.VANDENWORM L.LILJAS CRYSTALLOGRAPHIC STUDIES OF RNA HAIRPINS IN COMPLEXES WITH RECOMBINANT MS2 CAPSIDS AND IMPLICATIONS FOR BINDING REQUIREMENTS RNA V. 5 131 1999

Experimental Method: X-RAY_DIFFRACTION

Structure Images

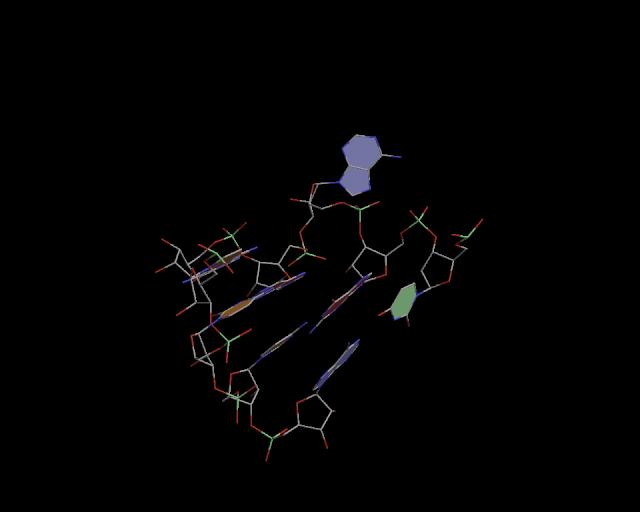

3d structure of junction secondary structure of junction

Click to launch 3D viewer Jmol | Larger 3D image | Created with Raster3D and RNAView

Derived Information
Type:Bulge LoopCluster:1AQ3 j2 R-G5 R-C14
NC-IUBMB Classification:2HS1Cluster Page
Angles: 171°
Fit Criteria: C
Extracted Structure:Download
Minimized Structure:Download RMSD = 0.49892Å

For more detailed information view the raw JunctionScanner output.

Sequence

Strand 1: Chain S: UGAGG 5nt

Strand 2: Chain S: CCCA 4nt
