Entry # 10405: 2D1A_j2_A-C22_B-A15

Primary Citation: (from PDB entry 2D1A)

S.BABA K.TAKAHASHI S.NOGUCHI H.TAKAKU Y.KOYANAGI N.YAMAMOTO G.KAWAI SOLUTION RNA STRUCTURES OF THE HIV-1 DIMERIZATION INITIATION SITE IN THE KISSING-LOOP AND EXTENDED-DUPLEX DIMERS J.BIOCHEM.(TOKYO) V. 138 583 2005

Experimental Method: NMR

Structure Images

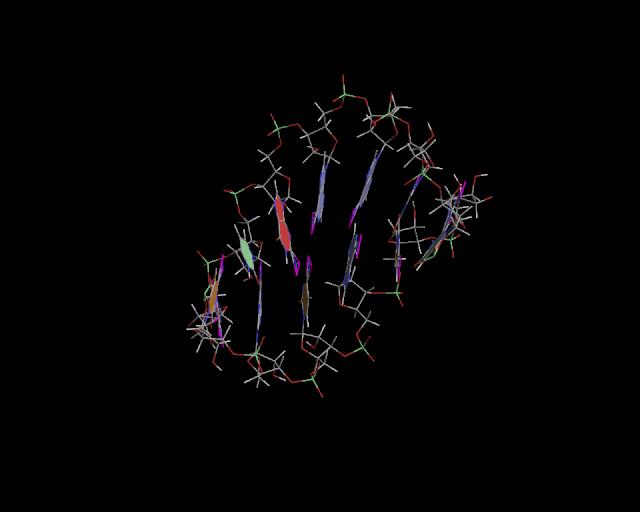

3d structure of junction secondary structure of junction

Click to launch 3D viewer Jmol | Larger 3D image | Created with Raster3D and RNAView

Derived Information
Type:Bulge LoopCluster:2D1A j2 A-C22 B-A15
NC-IUBMB Classification:2HS1Cluster Page
Angles: 143°
Fit Criteria: A
Extracted Structure:Download
Minimized Structure:Download RMSD = 0.4369Å

For more detailed information view the raw JunctionScanner output.

Sequence

Strand 1: Chain A: CACACG 6nt

Strand 2: Chain B: UGAAGUG 7nt
